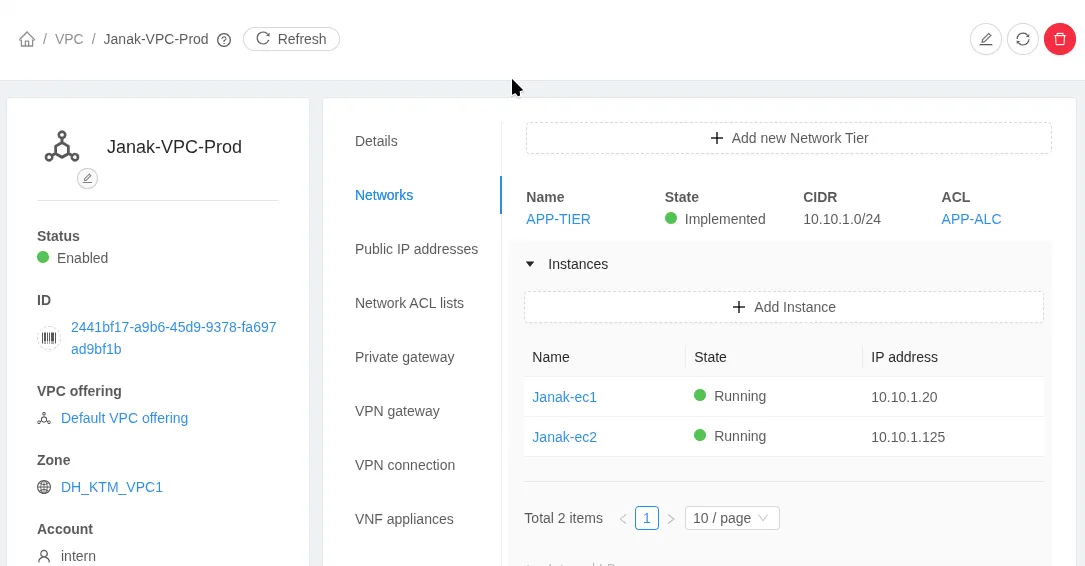

Configuring BIND as a caching or forwarding DNS server on Ubuntu on my VPC with private ip.
1. Installation
The first step is to install the BIND (Berkeley Internet Name Domain) package, which is named bind9 on Ubuntu.
| Command | Explanation |
|---|---|
sudo apt update | Updates the local list of available packages from the repositories. |
sudo apt install bind9 bind9utils -y | Installs the BIND9 DNS server software and the bind9utils package, which includes helpful tools like named-checkconf for configuration validation. The -y flag automatically confirms the installation. |
sudo ufw allow 53/udp | Configures the Uncomplicated Firewall (UFW) to allow incoming traffic on port 53 (UDP), which is the standard port for DNS queries. |
2. Configure the Main Options File
The primary configuration for caching and forwarding is done in the /etc/bind/named.conf.options file.
| Command | Explanation |
|---|---|
sudo nano /etc/bind/named.conf.options | Opens the configuration file in the nano text editor with superuser privileges for editing. |
Configuration Content
You will modify the file to include the IP addresses of your forwarders (public DNS servers) and an Access Control List (ACL) to define which clients are allowed to use your server.
Example named.conf.options:
// ====================================================================
// ACL DEFINITION
// Define the Access Control List (ACL) of clients permitted to query
// this DNS server for recursive lookups.
// ====================================================================
acl goodclients {
// Allows the entire 10.10.1.x subnet access.
10.10.1.0/24;
// Allows queries originating from the server itself.
localhost;
// Allows queries from all locally configured networks on the server.
localnets;
};
// ====================================================================
// GLOBAL OPTIONS
// ====================================================================
options {
// Directory where BIND will store cache files.
directory "/var/cache/bind";
// Enable recursion: allows the server to query upstream servers
// on behalf of internal clients.
recursion yes;
// Define which clients are allowed to use recursion (the ACL defined above).
allow-query { goodclients; };
// Define the list of public DNS servers (forwarders) to send queries to.
forwarders {
8.8.8.8;
8.8.4.4;
};
// Instruction to ONLY use the servers listed in 'forwarders'.
// If the forwarders fail, the server will not attempt to resolve via root hints.
forward only;
// DNSSEC validation is enabled, automatically retrieving the trusted root key.
dnssec-validation yes;
// auth-nxdomain no: conform to RFC1035, returning NXDOMAIN only
// when explicitly confirmed by an authoritative server.
auth-nxdomain no;
// listen-on-v6 { any; }: Instructs BIND to listen on all IPv6 interfaces.
listen-on-v6 { any; };
};Key Directives Explained
| Directive | Purpose |
|---|---|
recursion yes; | Allows the server to perform queries for external domains on behalf of clients. Required for a caching/forwarding server. |
forwarders {...}; | Specifies the upstream DNS servers (e.g., public or private ones) that your BIND server will send non-local queries to. |
forward only; | Instructs BIND to only use the servers listed in forwarders. If they fail, BIND will not attempt to resolve the query via root servers. |
allow-query {...}; | Restricts which client IPs or networks can send DNS queries to your server, defined by the acl goodclients. This is a critical security measure. |
acl goodclients {...}; | Defines a custom group of IP addresses and networks. 192.168.1.0/24 is a private DNS network example, allowing all devices on that subnet. localhost is the server itself. |
3. Configuration Validation and Restart
After saving the configuration file, you must check for syntax errors before restarting the service.
| Command | Explanation |
|---|---|
sudo named-checkconf | Checks the overall BIND configuration files for syntax errors. If it returns no output, the syntax is correct. |
sudo systemctl restart bind9 | Restarts the BIND service to apply the new configuration. |
sudo systemctl status bind9 | Checks the status of the service to ensure it is running without errors. Look for the Active: active (running) message. |
4. Configuring Clients to Use the New Server
For your internal devices to benefit from the caching and forwarding, they must be configured to use your BIND server’s IP address (e.g., 192.168.1.50) as their primary DNS server.
Temporary Client Configuration
This is best for quick testing on a client machine.
| Command | Explanation |
|---|---|
sudo nano /etc/resolv.conf | Edits the file responsible for listing DNS servers. Note: Changes here are often lost after reboot or a network change. |
Example resolv.conf content:
# Comment out any existing nameserver lines
# nameserver 127.0.0.53
// Set your BIND server's internal IP address
nameserver 10.10.1.205. Testing the Server
Use the hostmane -I and dig command from your client machine to test resolution and confirm it’s using your server.
| Command | Explanation |
|---|---|
dig janakkumarshrestha0.com.np | Queries the DNS server configured in your client’s /etc/resolv.conf (which should be your BIND server at 10.10.1.20) for the IP address of the domain janakkumarshrestha0.com.np. This confirms client-side resolution. |
hostname -I | Displays all the private IP addresses currently assigned to the server’s network interfaces (e.g., 10.10.1.20). This is a quick way to confirm the local machine’s identifier without parsing ifconfig or ip addr. |
~ > hostname -I
10.10.1.125
~ >
~ > dig janakkumarshrestha0.com.np
; <<>> DiG 9.18.30-0ubuntu0.24.04.2-Ubuntu <<>> janakkumarshrestha0.com.np
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 27741
;; flags: qr rd ra; QUERY: 1, ANSWER: 2, AUTHORITY: 0, ADDITIONAL: 1
;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 1232
; COOKIE: 1d5a81745293f43b0100000068eccd44471fd49ea494d57f (good)
;; QUESTION SECTION:
;janakkumarshrestha0.com.np. IN A
;; ANSWER SECTION:
janakkumarshrestha0.com.np. 300 IN A 104.21.20.41
janakkumarshrestha0.com.np. 300 IN A 172.67.191.82
;; Query time: 59 msec
;; SERVER: 10.10.1.20#53(10.10.1.20) (UDP)
;; WHEN: Mon Oct 13 09:5Caching Test
Run the dig command twice. The first query will show a high query time as your server forwards the request. The second query for the exact same domain should show a query time of 0 msec or very close to it, proving that the answer was served from the server’s cache.
~ > dig janakkumarshrestha0.com.np
; <<>> DiG 9.18.30-0ubuntu0.24.04.2-Ubuntu <<>> janakkumarshrestha0.com.np
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 50236
;; flags: qr rd ra; QUERY: 1, ANSWER: 2, AUTHORITY: 0, ADDITIONAL: 1
;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 1232
; COOKIE: dc20b4eff868227f0100000068eccd49b12406a2f2b5b8df (good)
;; QUESTION SECTION:
;janakkumarshrestha0.com.np. IN A
;; ANSWER SECTION:
janakkumarshrestha0.com.np. 295 IN A 104.21.20.41
janakkumarshrestha0.com.np. 295 IN A 172.67.191.82
;; Query time: 1 msec
;; SERVER: 10.10.1.20#53(10.10.1.20) (UDP)
;; WHEN: Mon Oct 13 09:58:33 UTC 2025
;; MSG SIZE rcvd: 115
~ >
